The L3Harris Next Generation Aiming Laser is a rugged, ultra-compact and lightweight system designed to be compatible with all generations of night vision devices.
The size of a credit card, NGAL uses an advanced illuminator design to achieve a more uniform near infrared illuminator beam for increased situational awareness. High-efficiency electronics support increased system performance at reduced size, weight and power.

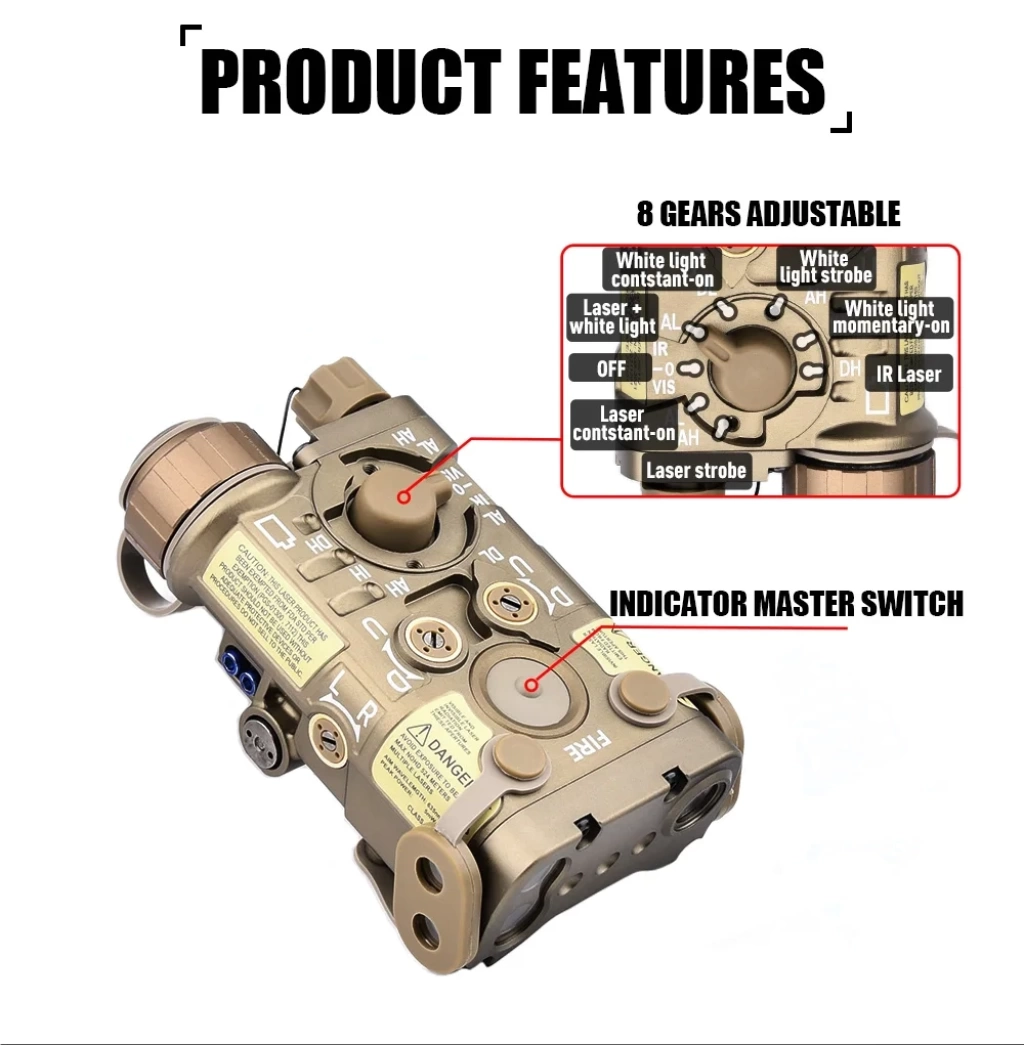

Features

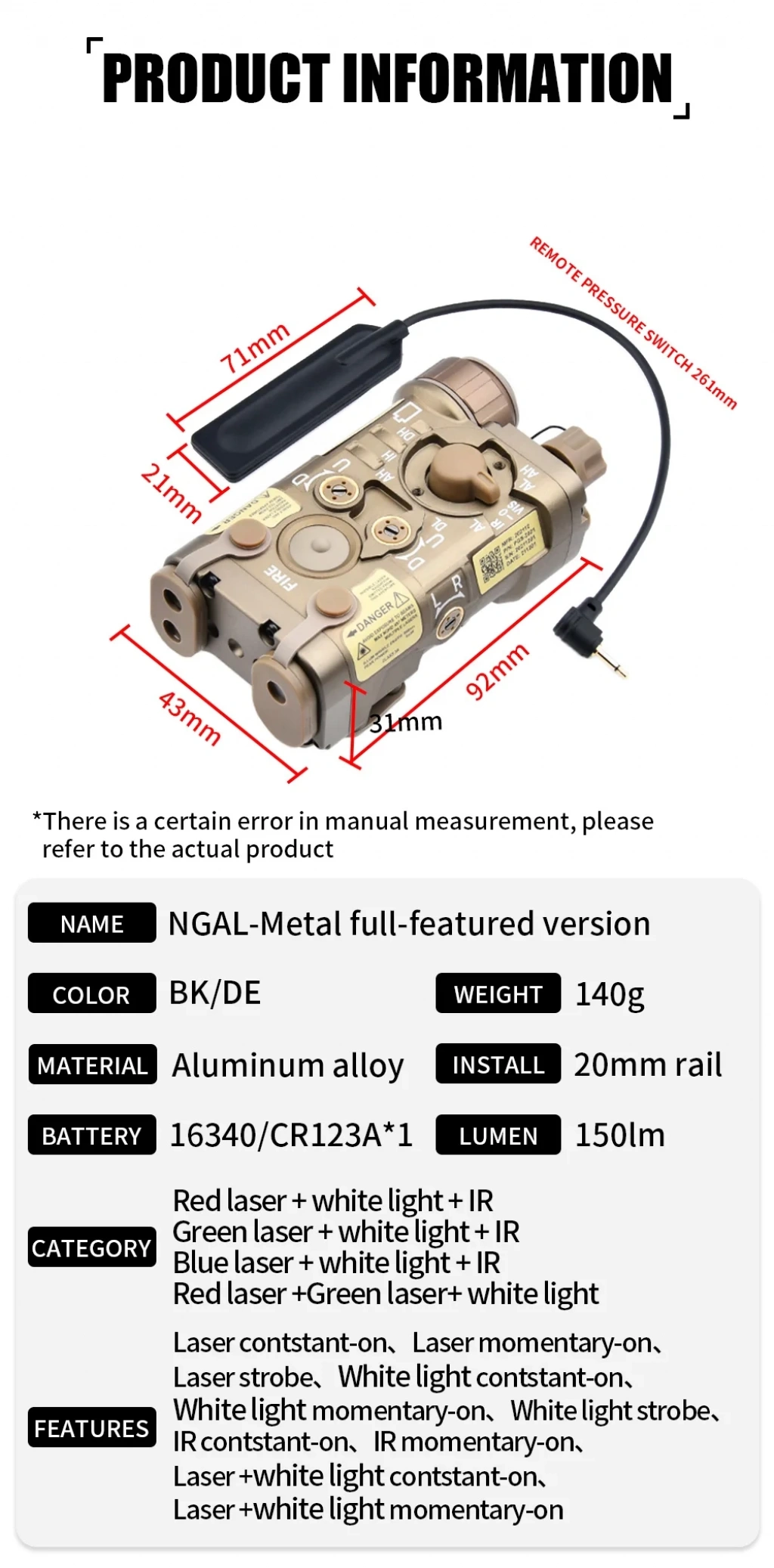

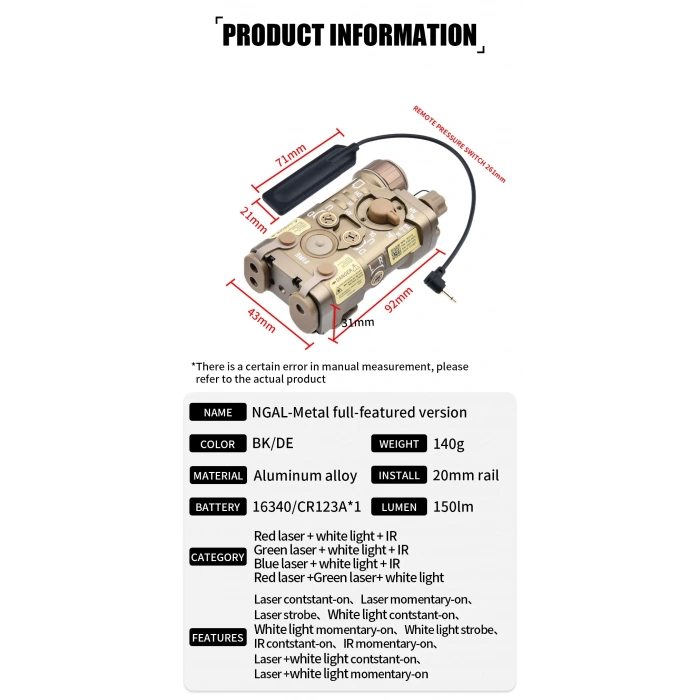

Specifications
| Dimensions | 3.6 in. L x 2.0 in. W x 1.25 in. H |
| Weight | < 5 oz. with battery |
| Battery Type | (1) DL123 or AA |
| Battery Life | 3.5 hrs. in dual high |
| Visible Aim Laser | Specifications at 25 °C (77 °F) |
| Output Power Low | ≤ 4.9 mW / 3R Safety Class |
| Output Power High | ≤ 80 mW / 3B Safety Class |
| Beam Divergence | 0.3 (±0.2) mrad |
| Wavelength | 635 (± 15) nm |
| IR Aim Laser | Specifications at 25 °C (77 °F) |
| Output Power Low | ≤ 0.6 mW / 3R Safety Class |
| Output Power High | ≤ 35 mW / 3B Safety Class |
| Beam Divergence | 0.3 (±0.20) mrad |
| Wavelength | 835 (± 15) nm |
| IR Illuminator | Specifications at 25 °C (77 °F) |
| Output Power Low | ≤ 2.7 mW / 3R Safety Class |
| Output Power High | ≤ 90 mW / 3B Safety Class |
| Beam Divergence | ≤ 15 to ≥ 105 mrad |
| Wavelength | 860 (±15/-35) nm |
